About This Item

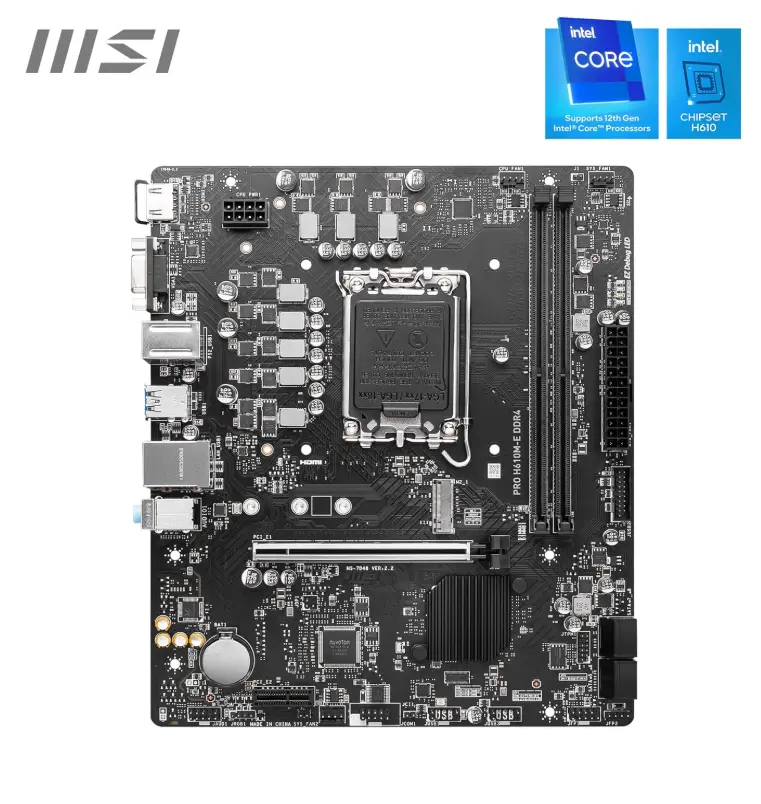

Supports 12th Gen Intel Core processors with the Intel H610 chipset on the LGA 1700 socket, making it a reliable choice for everyday computing, office use, and entry-level gaming. It features MSI Core Boost power design for stable performance and includes dual DDR4 memory slots supporting up to 64GB for smooth multitasking.

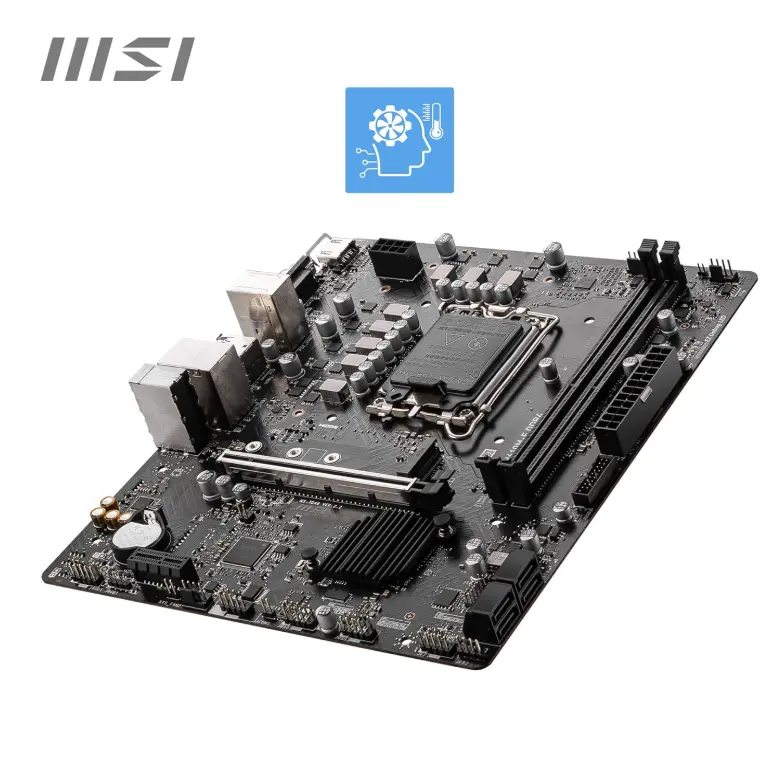

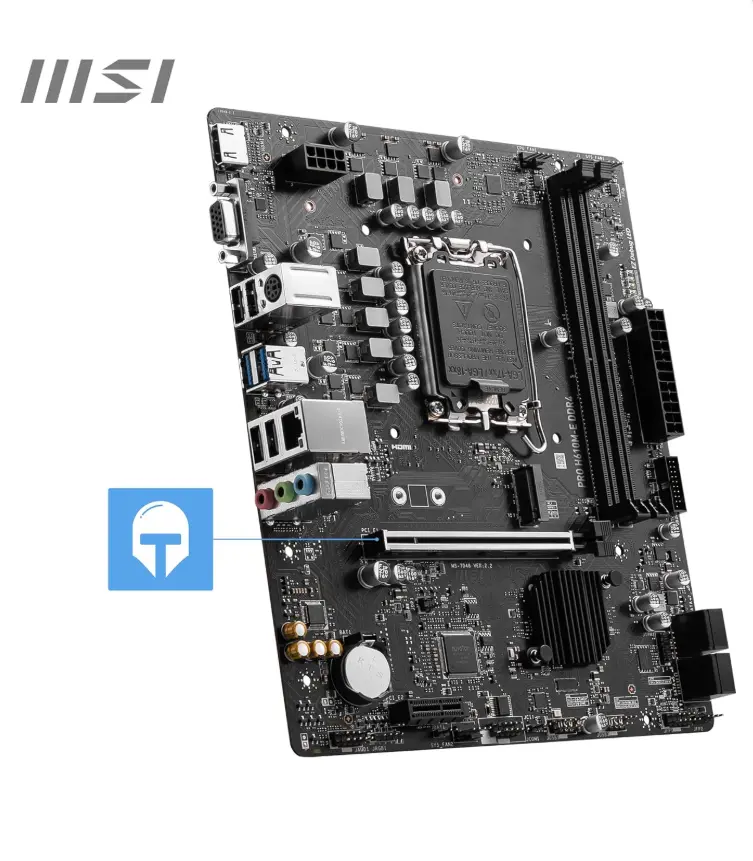

For graphics and storage, it offers a PCIe 4.0 x16 slot (reinforced with a steel frame) for modern GPUs and a Gen3 x4 M.2 slot to maximize NVMe SSD speed, reducing load and boot times. The chipset heatsink and thickened copper PCB help manage heat, while Frozr AI Cooling adjusts fan speed based on CPU and GPU temperature automatically.

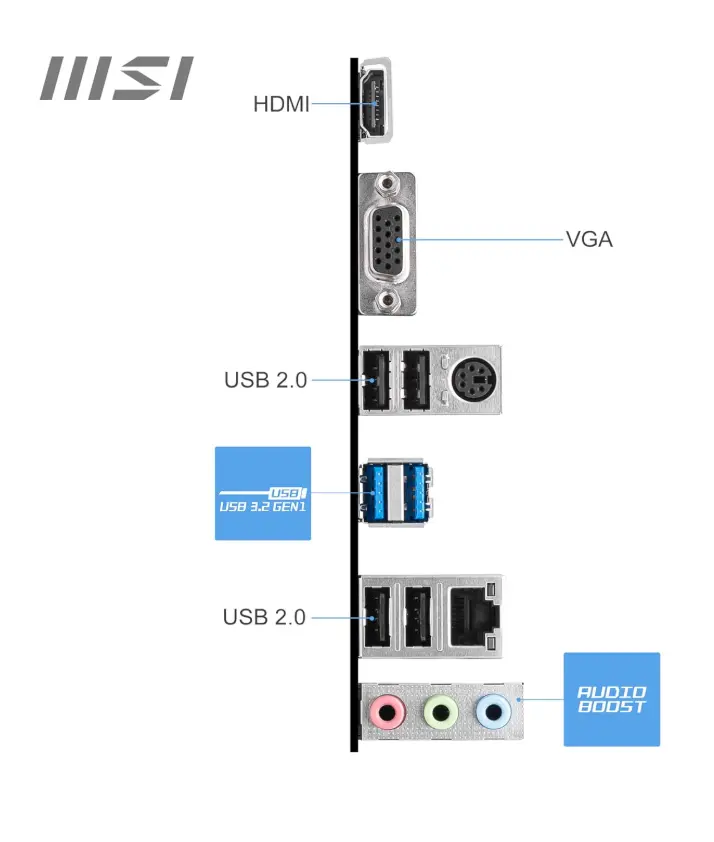

Connectivity includes Realtek 1G LAN for stable networking, HDMI and VGA display outputs (requires CPU with integrated graphics), and 4x USB 3.2 Gen1 Type-A ports for faster data transfer. It also delivers clear audio with 7.1 HD Audio and Audio Boost support.
Design features
| Processor Socket | LGA 1700 |
|---|---|
| Compatible Devices | Personal Computer |
| RAM Memory Technology | DDR4 |
| Compatible Processors | Intel Core 12th Gen, Intel Core 13th Gen , 14th |
| Chipset Type | Intel H610 |
| Memory Clock Speed | 3200 MHz |
| Platform | Windows 10, Windows 11 |
| CPU Model | Pentium |
| DriveMemory Storage Capacity | 64 GB |
| Ram Memory Maximum Size | 64 GB |
| Graphics Card Interface | Integrated |
| Memory Slots Available | 2 |
| Number Of Ports | 13 |
| S/PDIF Connector Type | Optical |
| System Bus Standard Supported | SATA 3 |
| Total SATA Ports | 4 |
| USB 2.0 | 2 |
| Total USB Ports | 8 |
| Number of Ethernet Ports | 1 |
| Total HDMI Port | 1 |
| Total PCIe Ports | 1 |
