About The Item

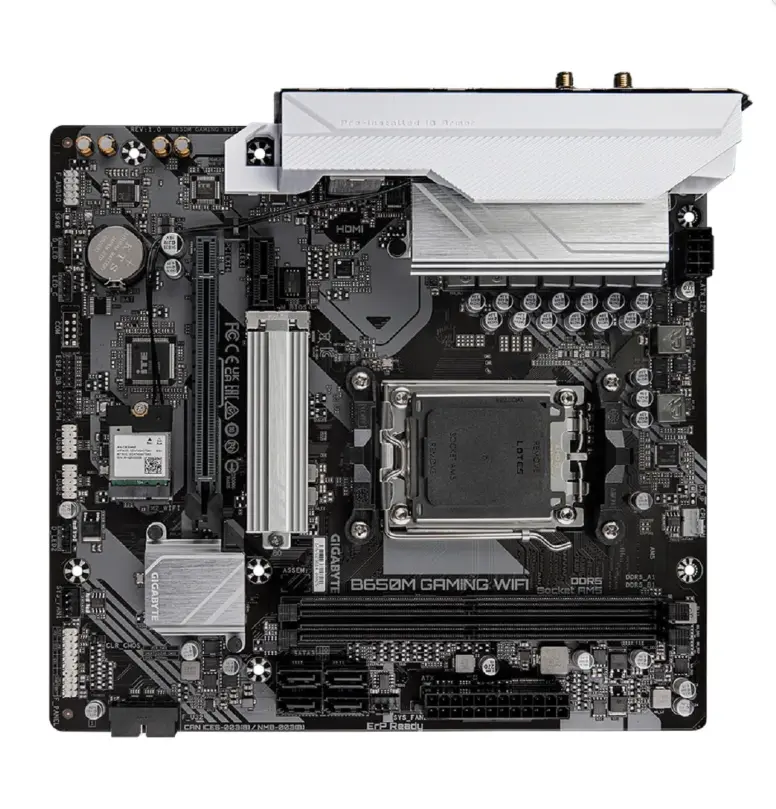

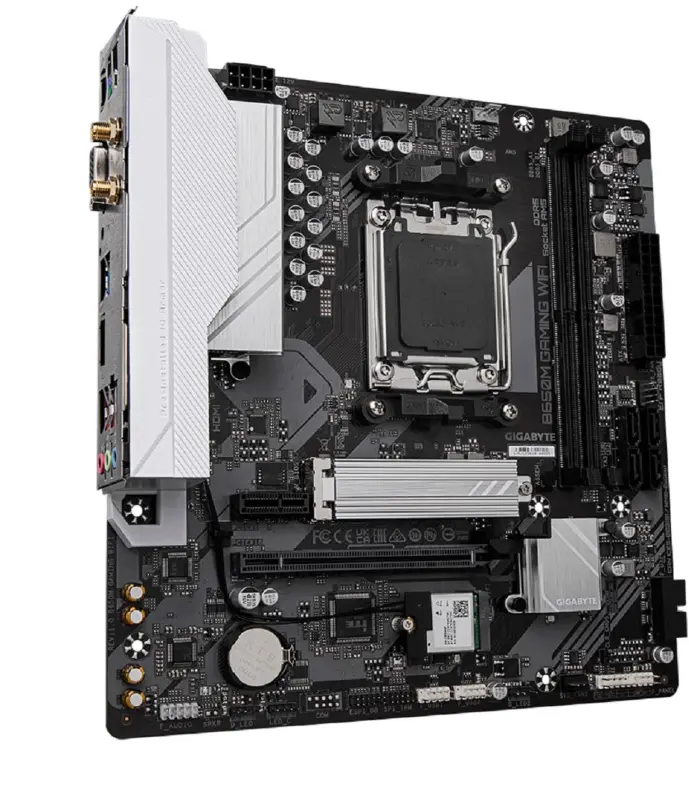

Supports AMD Ryzen 7000 and 8000 Series processors with the AMD B650 chipset, making it a strong and future-ready choice for everyday computing, gaming, or work builds. It comes with 2 DDR5 DIMM slots supporting up to 96GB and speeds up to 6400MHz (OC) for fast multitasking and smooth performance
.
The motherboard includes integrated AMD Radeon graphics support with D-Sub and HDMI 2.1 display outputs, supporting resolutions up to 4K@60Hz. Audio is handled by a Realtek High Definition Audio CODEC with support for 2/4/5.1/7.1 channel speaker setups, providing clear and immersive sound.

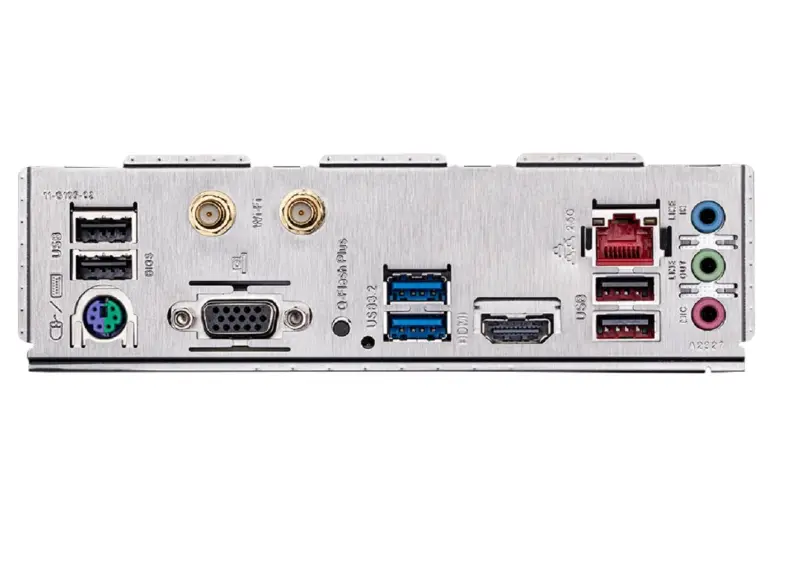

Back panel connectivity includes USB 3.2 Gen 1 & USB 2.0 ports, RJ-45 LAN, audio jacks, and a PS/2 port for legacy peripherals. It also features Q-Flash and Q-Flash Plus for easy BIOS updates and comes in a compact Micro-ATX form factor (24cm x 22.5cm), making it suitable for both small and standard PC cases. Supports Windows 10 and 11 (64-bit).
Product Information
| Processor Socket | Socket AM5 |
|---|---|
| Compatible Devices | Personal Computer |
| RAM Memory Technology | DDR5 |
| Compatible Processors | AMD Ryzen 7000 Series / Ryzen 8000 |
| Chipset Type | AMD B650 |
| Memory Clock Speed | 6400 MHz |
| Platform | Windows |
| CPU Model | Athlon |
| DriveMemory Storage Capacity | 96 GB |
| Ram Memory Maximum Size | 96 GB |
| Main Power Connector Type | 24-Pin |
| Graphics Card Interface | PCI Express |
| Memory Slots Available | 2 |
| Number Of Ports | 13 |
| System Bus Standard Supported | SATA 3 |
| Total SATA Ports | 4 |
| USB 2.0 | 4 |
| Total USB Ports | 9 |
| Number of Ethernet Ports | 1 |
| Total HDMI Port | 1 |
| Total PCIe Ports | 2 |
