About This Item

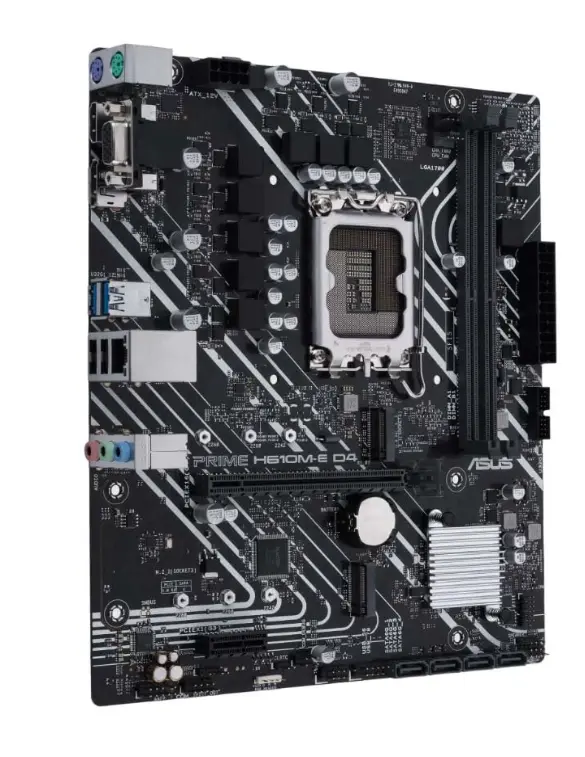

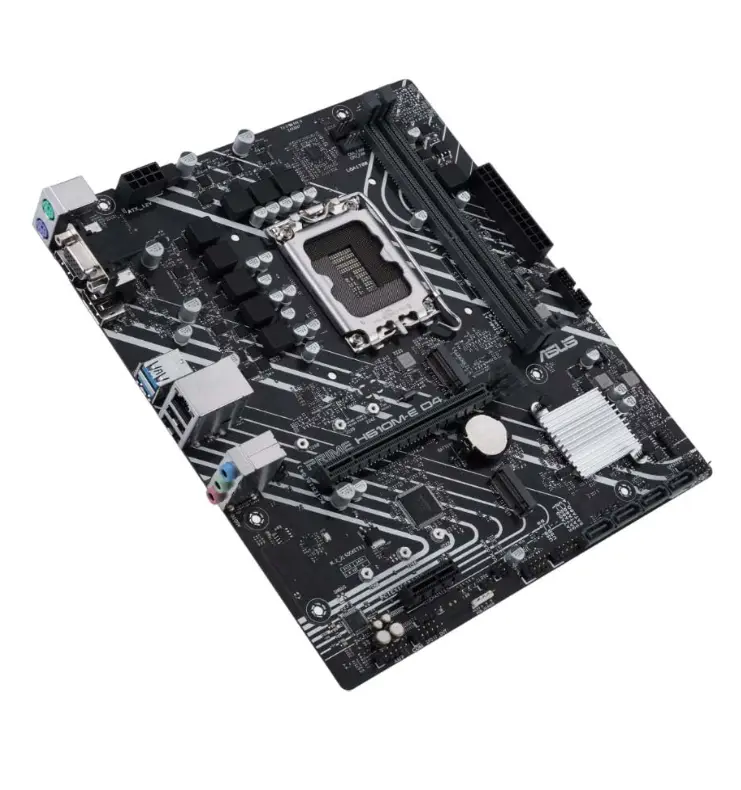

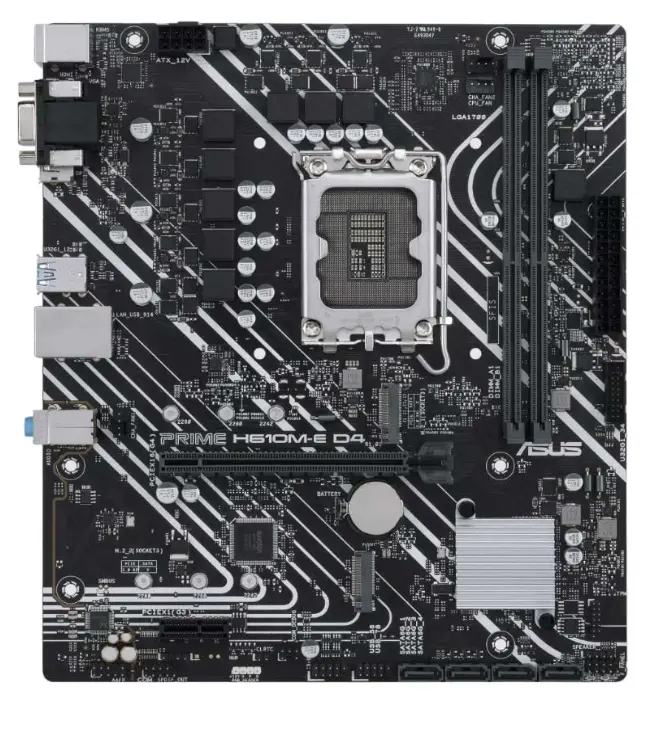

Supports 12th Gen Intel Core, Pentium Gold, and Celeron processors on the LGA 1700 socket, with 2 DDR4 DIMM slots supporting up to 64GB for smooth everyday performance and multitasking.

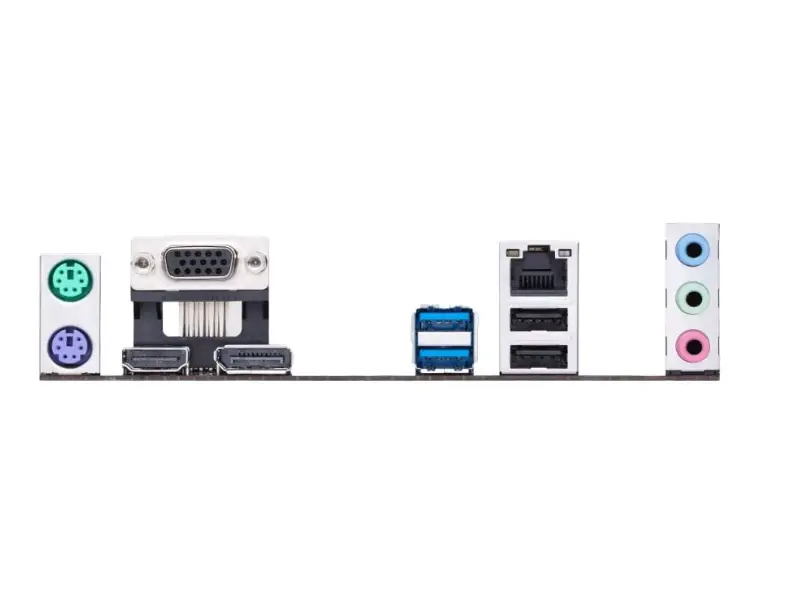

Features PCIe 4.0, dual M.2 slots, four SATA ports, Realtek 1Gb LAN, and multiple USB ports, along with HDMI, DP, and D-Sub display outputs for flexible connectivity.
Built with VRM & PCH heatsinks, Fan Xpert 4 cooling control, and a reinforced SafeSlot PCIe slot, plus Q-LED Core diagnostics and protection features for stability and long-term reliability.
Product Information
| Processor Socket | LGA 1700 |
|---|---|
| Compatible Devices | DESKTOP |
| RAM Memory Technology | DDR4 |
| Compatible Processors | Supports 12th Gen Intel Core, Pentium Gold, and Celeron processors |
| Chipset Type | Intel H610 |
| Memory Clock Speed | 3000 MHz |
| Platform | Windows |
| CPU Model | Intel |
| DriveMemory Storage Capacity | 64 GB |
| Ram Memory Maximum Size | 64 GB |
| Main Power Connector Type | 24-Pin |
| Graphics Card Interface | PCI Express |
| Memory Slots Available | 2 |
| Number Of Ports | 18 |
| S/PDIF Connector Type | Optical |
| System Bus Standard Supported | SATA 3 |
| Total SATA Ports | 4 |
| USB 2.0 | 4 |
| Total USB Ports | 10 |
| Number of Ethernet Ports | 1 |
| Total HDMI Port | 1 |
| Total PCIe Ports | 2 |
