About This Item
Supports AMD Ryzen 7000 Series processors with a strong 14+2+1 phase power design (SPS) for stable and reliable performance. It includes 4 DDR5 DIMM slots supporting speeds up to 6400+ MHz (OC), ensuring fast multitasking and smooth system responsiveness.

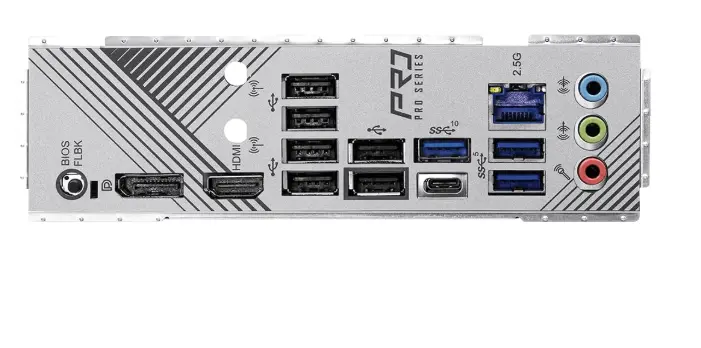

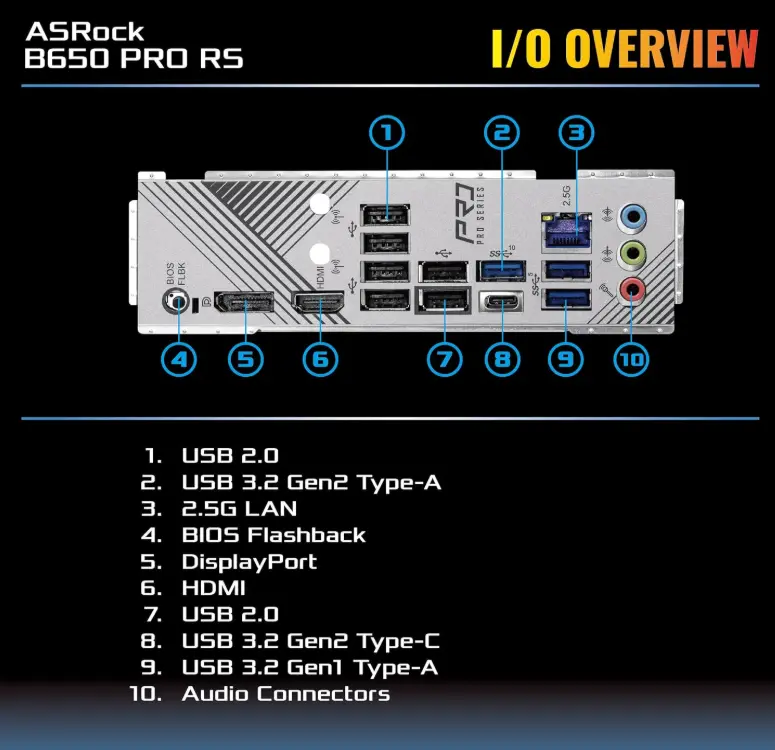

For expansion and graphics, it provides PCIe 4.0 x16, PCIe 3.0 x16, and PCIe 4.0 x1 slots along with an M.2 Key-E slot for adding WiFi modules. Display connectivity options include HDMI and DisplayPort, making it suitable for both work and entertainment setups.
Storage flexibility is high with 1 Blazing M.2 (PCIe Gen5x4) for ultra-fast SSD performance, 1 Hyper M.2 (PCIe Gen4x4), 1 M.2 (PCIe Gen3x2 & SATA3), and 4 SATA3 ports. Audio is enhanced with 7.1 CH HD sound using the Realtek ALC897 codec and Nahimic Audio for an improved listening experience.
Product Information
| Processor Socket | Socket AM5 |
|---|---|
| Compatible Devices | Windows 11 |
| RAM Memory Technology | DDR5 |
| Compatible Processors | Ryzen 7000 Series |
| Chipset Type | AMD B650 |
| Memory Clock Speed | 6200 MHz |
| Platform | Windows |
| CPU Model | Ryzen 7 |
| DriveMemory Storage Capacity | 128 GB |
| Ram Memory Maximum Size | 128 GB |
| Main Power Connector Type | 24-Pin |
| Graphics Card Interface | PCI Express |
| Memory Slots Available | 2 ( yes) |
| Number Of Ports | 24 |
| S/PDIF Connector Type | Optical |
| System Bus Standard Supported | SATA 3 |
| Total SATA Ports | 2 |
| USB 2.0 | 2 |
| Total USB Ports | 24 |
| Number of Ethernet Ports | 1 |
| Total HDMI Port | 1 |
